Multi-shield against multi-threat
Breaking Boundaries, Pioneering Innovation

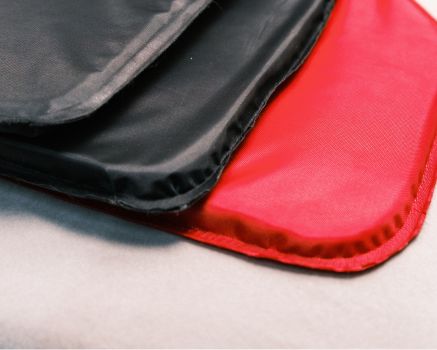

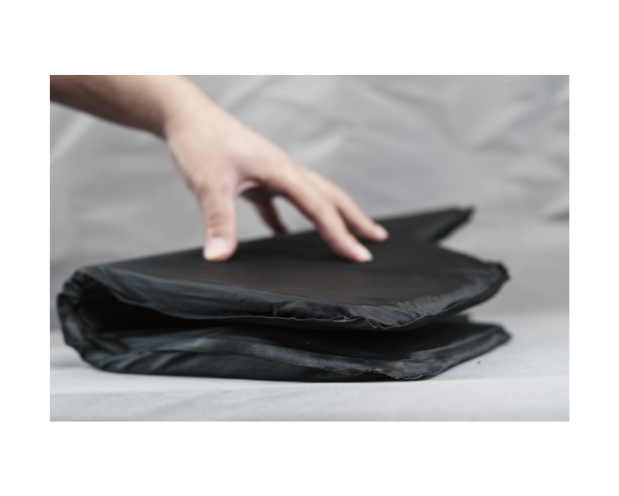

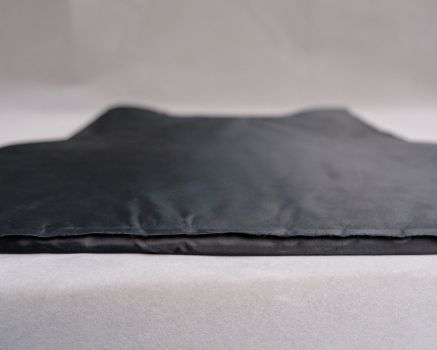

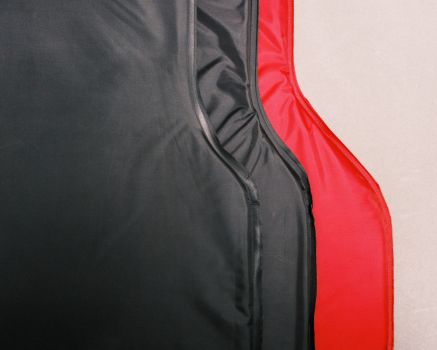

It is the first pure Aramid UD fabric-developed product that provides both bulletproof and stab-proof properties. Made from Teijin Twaron® Aramid fibers, with a single-layer Areal Density of 215±5g/㎡, this product excels in both performance and lightness, as well as cost-effectiveness.
“We combine our extensive research experience of resin characteristics with advanced techniques such as nano-modification and physical blending. Through multiple specialized procedures, we have effectively addressed the issue of poor stab resistance in Aramid UD fabrics, challenging the conventional belief that they cannot be used as stab-resistant materials in the domestic industry. At the same time, we fully utilize their outstanding bulletproof performance.” -- Aerorate R&D Team Leader
| Main Material | Aerorate Protection Aramid UD Fabric | ||
|---|---|---|---|
| Bulletproof Protection Level | Stab-proof Protection Level | Thinness (mm) | Density (g/㎡) |
| NIJ IIIA .44 | NIJ Stab-resistant Level 1 | 11.5 | 9.44 |
| NIJ IIIA .44 | NIJ Stab-resistant Level 2 | 12.0 | 8.18 |
| NIJ IIIA .44 | NIJ Stab-resistant Level 3 | 12.7 | 7.34 |
| Warranty | 5 Years | ||
| As soft body armor is being used in increasingly diverse scenarios, we ensure our panel designs seamlessly integrate into our vest series, consisting of Full Protection, Concealable, Quick-Release, Tactical, Female, Waistcoat, and other variants; Backpack, Suitcase, and other gears. Each design provides a tailored fit, increased maneuverability, and higher cost-effectiveness. | |||
The National Institute of Justice (NIJ) is the research and standardization department for the U.S. Department of Justice. It is committed to scientifically studying, assessing and evaluating safety products. The ultimate aim of NIJ is to reduce crime and justice concerns. Nowadays, NIJ Standard is the most widely-used standard for bulletproof and stab proof vests all around the world.
NIJ standard 0101.06 is the standard of Bulletproof Performance of Personal Body Armor. This standard comes in NIJ Level II, IIIA, III, IV depending on the type of ammunition the bulletproof vest is designed to stop.
NIJ standard 0115.00 is the standard of Stab Resistance of Personal Body Armor. This standard comes in NIJ Level 1, 2 and 3 depending on how strong a force the stab proof vest is designed to stop.
To learn more about the latest NIJ body armor standards, visit our Understanding Body Armor Ratings blog.
1. Remove the functional panels from the carrier.
2. Use a soft-bristled brush or cloth to wipe the surface of the panel, avoid using cleaners that could damage the surface of the panel.
3. Dry clean, handwash or machine wash the carrier, avoid using any bleach.
4. Lay flat the carrier, air dry or humble dry it. We suggest that you prepare another carrier in case the cleaning causes delay.
5. Insert the panel back into the carrier.
To know more details, please click here: Care Instruction: How to clean and store your armor?
1. Ensure that your vest/plate carrier has the necessary pockets or compartments designed to hold ballistic plates. Most of them have front and back pockets for this purpose, while some have side pockets, too.
2. Start by unfastening any straps or closures on the vest/carrier to access the pockets.
3. Take the ballistic plates and orient them correctly. Typically, the curved side of the plate, instead of the "STRIKE FACE" side, should face your body for better ergonomics and fit.
4. Slide the plates into the appropriate pockets. Make sure they are centered and aligned properly.
5. Once the plates are inserted, secure them in place by fastening any straps, Velcro closures, or buckles provided by the vest/carrier. Ensure that the plates are snugly held in position and do not shift around.
6. Adjust the straps to achieve a comfortable and secure fit. The vest/carrier should be snug but not overly tight, allowing for freedom of movement while maintaining proper protection.
To know more details, please click here: Use Instruction: How to insert and remove the ballistic plate?
All our products are tested to NIJ standards by third party professional laboratory, giving you confidence in the quality and protection of our products. The claimed armor materials are inspected and graded by our lab technicians to ensure they meet our strict quality criteria. Please Contact Us to have a copy of test report.
All of our armors come with a 5-year warranty and are tested to NIJ standards giving you confidence in the quality and protection of our products.
